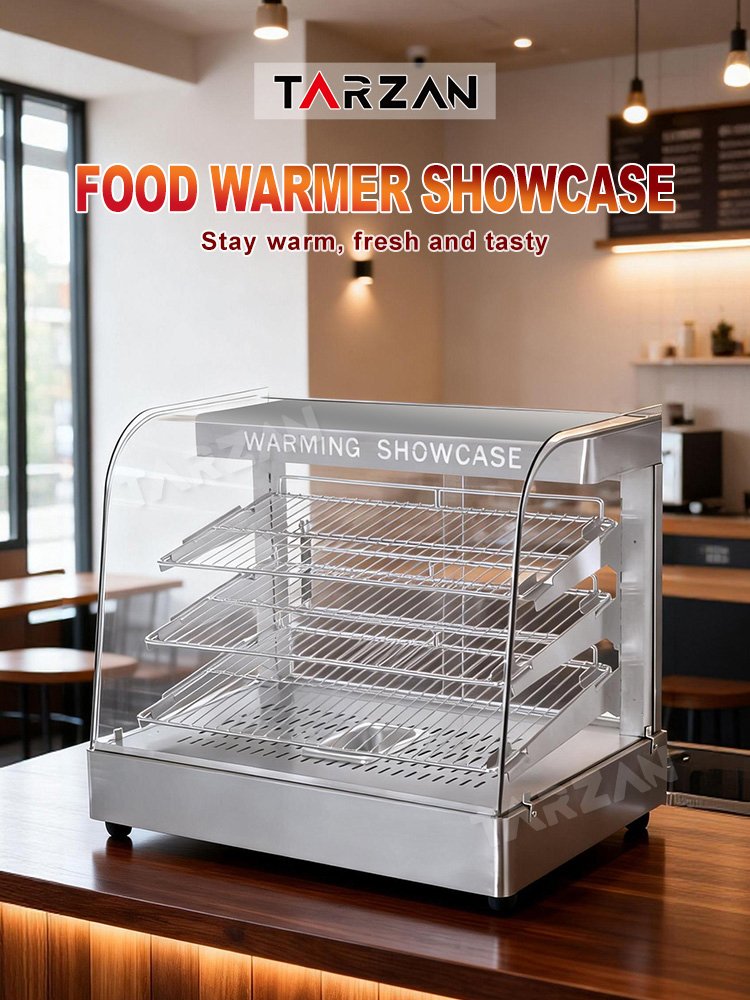

Compact Warming Showcase TFW-861
Compact Curved Glass Countertop Food Warmer with 3-Tier Adjustable Stainless Shelves & 30-85°C Thermostat
Featuring a Bottom Humidity Pan and Real-Time Thermometer for Bakeries, Cafes, and Fast Food Counters
TFW-861: Request Quote by Voltage, Plug Standard, and Order Quantity
Stainless Steel Body & Double Microcrystalline Tempered Glass
Countertop Curved Glass Food Warmer Showcase with 30–85°C Precision Thermostatic Dial
370×450×580 mm • 18 KG • 1.0 KW • 30–85°C Temp Range • 110V-240V
Market Power
Voltage / frequency / plug confirmed for destination market
MOQ
Confirm the current MOQ for the selected model in the quotation.
Lead Time
Confirmed according to model, quantity and customization scope.
OEM / ODM
Branding, market configuration and packaging are reviewed with the order.
Factory Manufacturer
Production, assembly and export packing capability
OEM / ODM Support
Branding, market configuration and packaging
Quality Inspection
Appearance, function and operating checks before packing
Export Order Support
Quotation, packing, documents and loading coordination
Product Details
Engineered for impulse food sales on commercial countertops, the curved glass food warmer TFW-861 holds fried chicken, burgers, egg tarts, and hot pastries at ideal serving temperatures in bakeries, cafes, and fast-food outlets.
Constructed with a 18 kg stainless steel frame and panoramic double-layered microcrystalline tempered glass, this curved glass food warmer provides exceptional heat insulation, structural rigidity, and 360-degree product visibility.

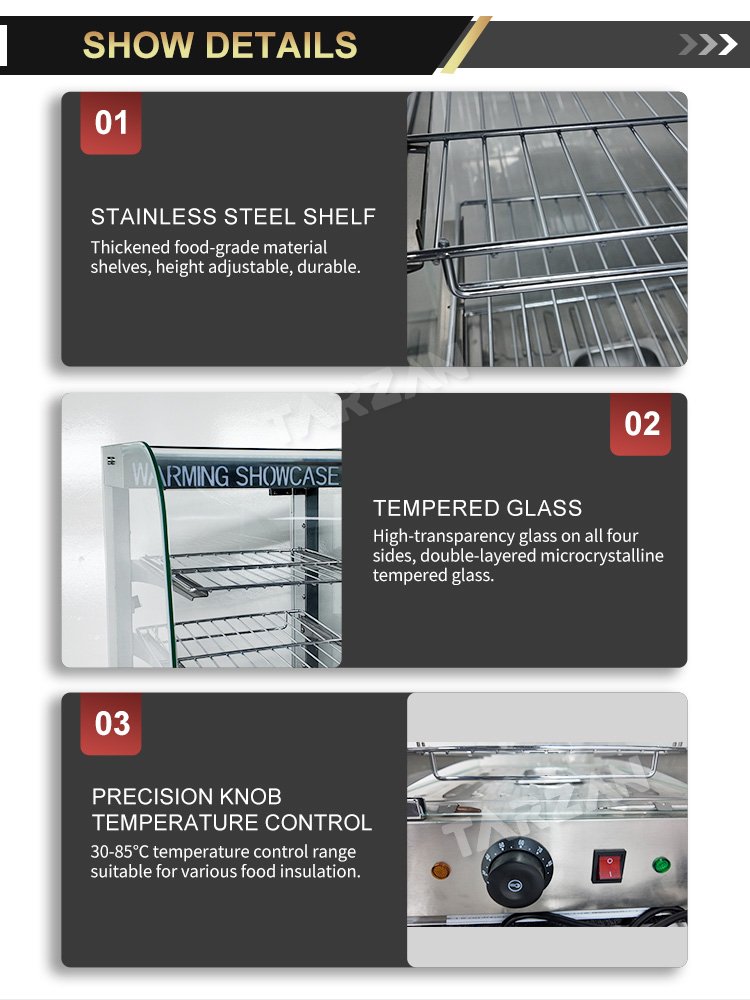

The curved glass food warmer TFW-861 features a precision 30°C to 85°C thermostatic control dial, an integrated top mechanical thermometer, a bottom water pan for humidity retention, and 3 adjustable stainless steel wire racks.
✔ Compact 3-tier curved glass food warmer overall dimensions: 14.6″W x 17.7″D x 22.8″H (370 x 450 x 580 mm)
✔ Powerful 1.0 kW heating element operating on standard 110V-240V / 50-60Hz commercial electrical supplies

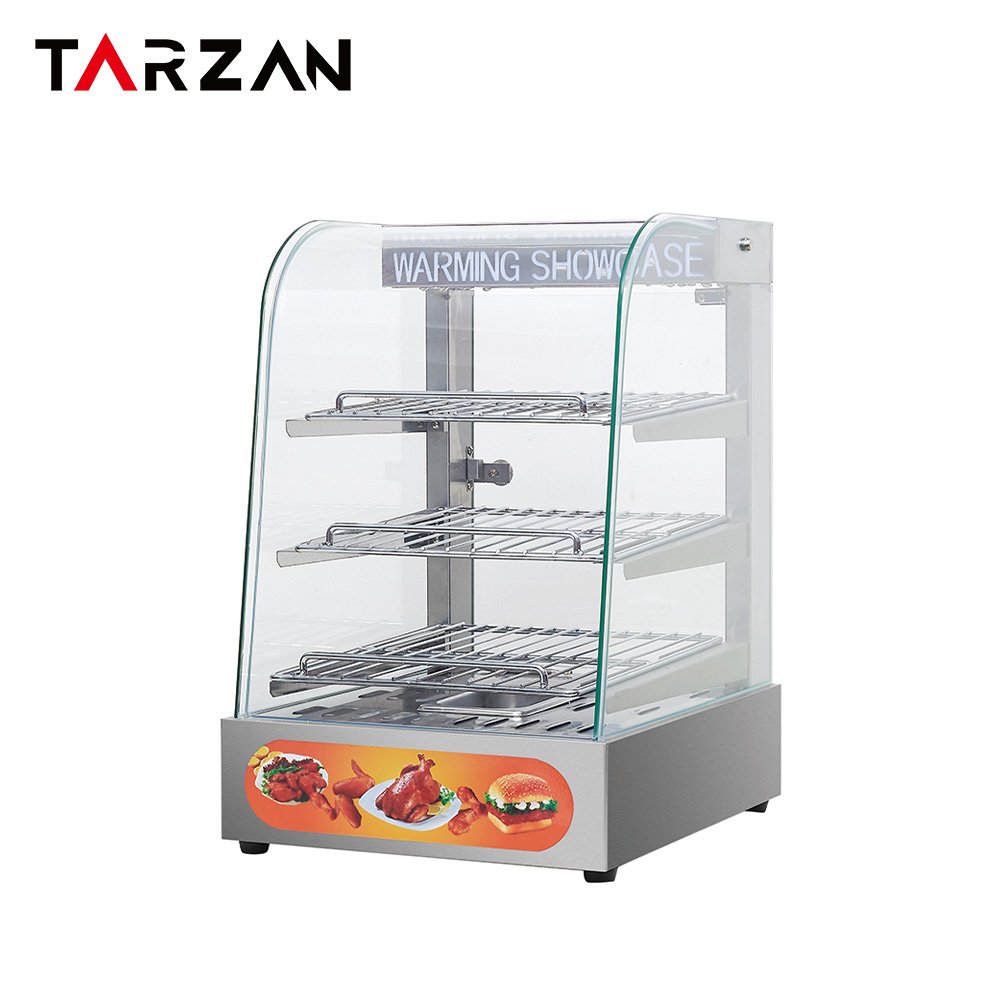

✔ Panoramic curved front glass combined with double-layered side glass panels for thermal retention and condensation prevention

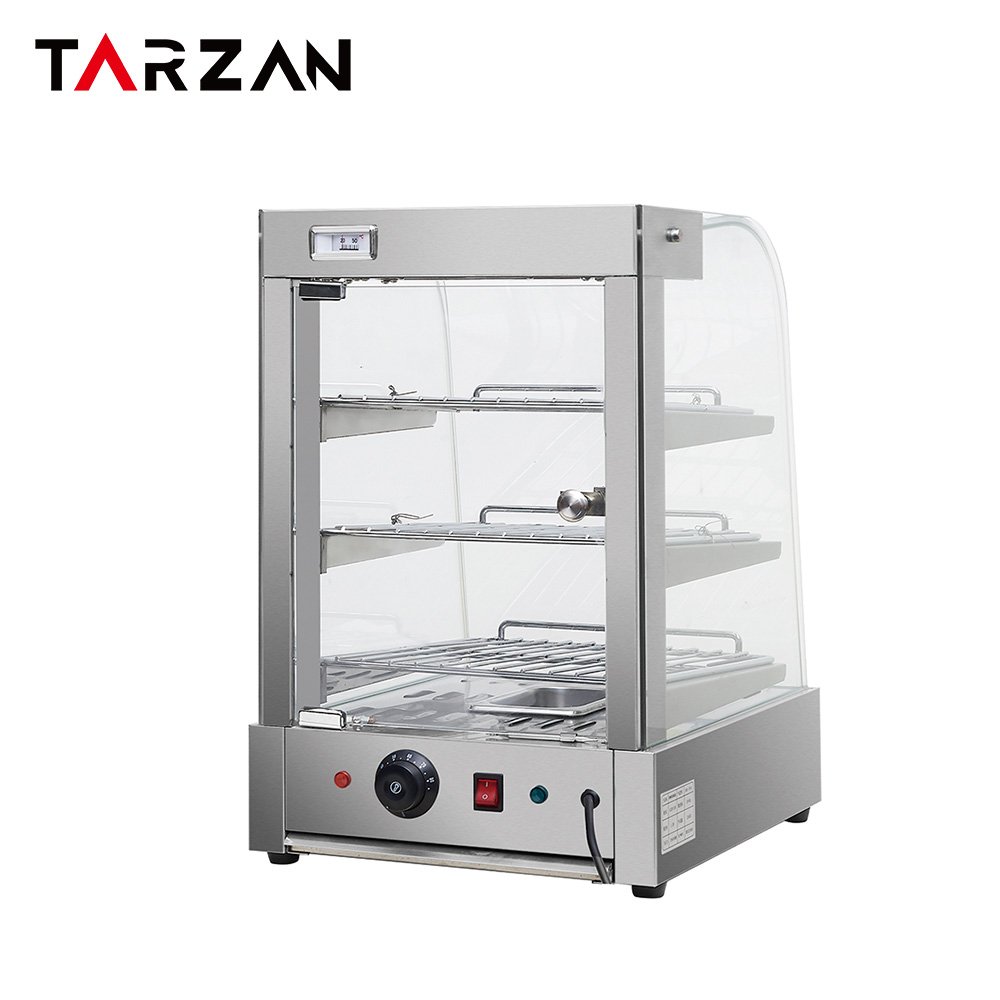

✔ Precision mechanical rotary thermostat dial with a 30°C to 85°C adjustable warming range
✔ Top-mounted real-time temperature display gauge allowing quick internal heat verification
✔ Built-in bottom humidity water pan keeping displayed food moist and preventing surfaces from drying out

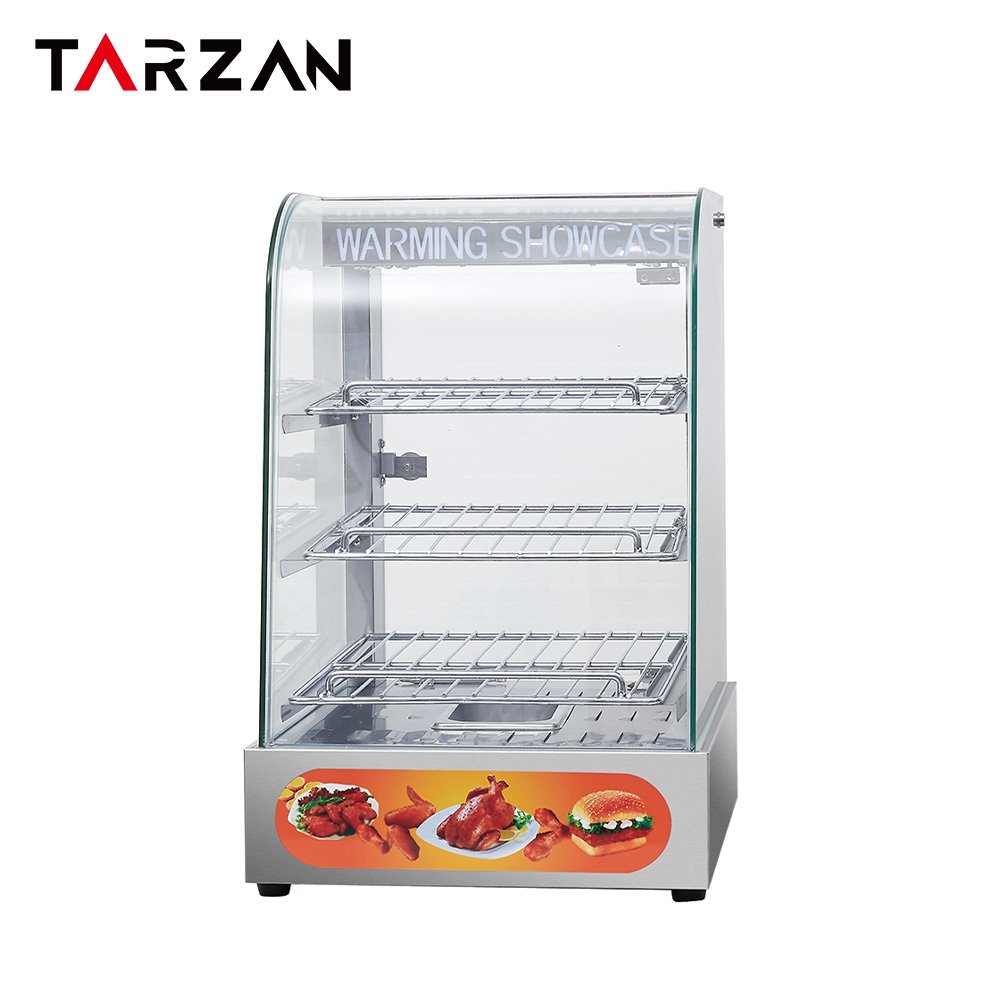

✔ 3 height and tilt-adjustable food-grade stainless steel wire shelves accommodating various tray arrangements
✔ Heat-resistant stainless steel magnetic door latch providing effortless access and secure closure

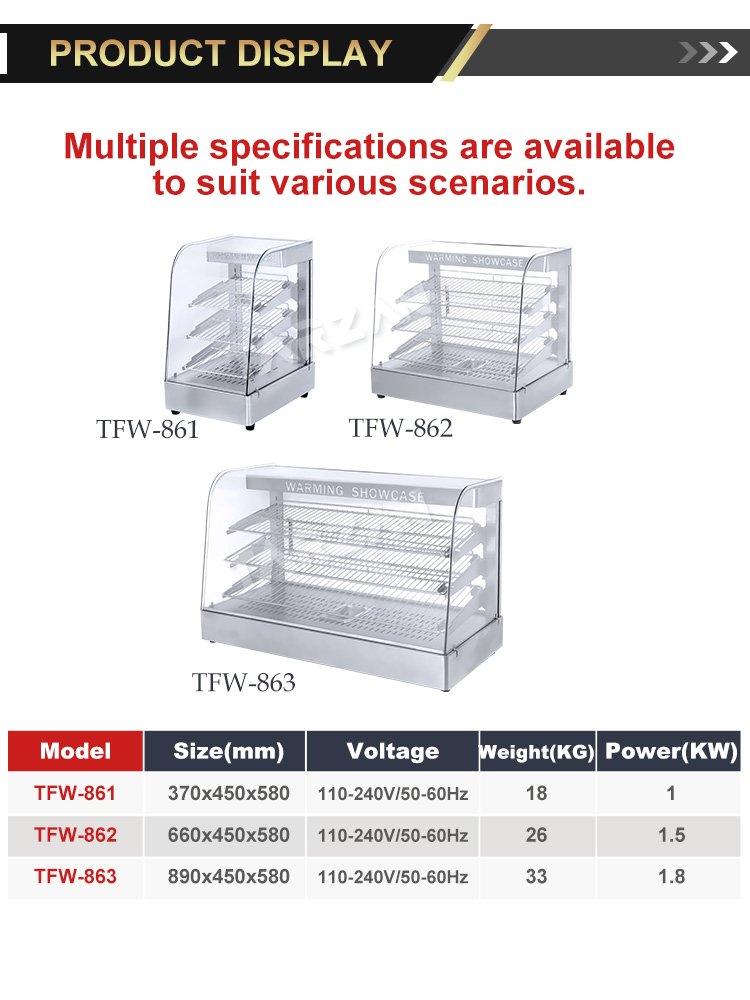

✔ Larger series options available: TFW-862 (660 mm width / 1.5 kW / 26 kg) and TFW-863 (890 mm width / 1.8 kW / 33 kg)
TECHNICAL DATA
Specifications
Additional information
| Dimensions | 380×450×640 |
|---|---|
| Material | Toughened Glass |
| Power | 1.2 |
| Power Source | Electric |
| Model Number | TFW-861 |
| Product Type | Display |
| Temperature Range | 30°C – 85°C |
| Net Weight | 14 KG |
| Capacity | 3 |
FACTORY & PRODUCTION
Inside Tarzan Kitchen
Production, assembly, inspection and export packing support for commercial kitchen equipment orders.
Production to Export Preparation
Production Workshop
Fabrication and equipment production.
Equipment Assembly
Bodies, controls and components assembled for the selected equipment.
Inspection Before Packing
Appearance and operating checks according to order requirements.
Export Preparation
Packing, documents and loading coordination.
Production Workshop
Equipment Assembly
Finished Equipment
ORDER PROCESS
From Inquiry to Shipment
01
Send Model & Quantity
Send the product link or model, required quantity, and destination country.
02
Confirm Configuration
Confirm voltage, frequency, plug type or gas connection, branding, packaging, and required documents.
03
Quote & Production
The quotation confirms pricing, configuration, and the estimated production lead time.
04
Inspect & Ship
Equipment is inspected, packed, and prepared for shipment according to the agreed shipping terms.
OEM / ODM & EXPORT
Branding, Market Configuration & Packing
Custom Branding
Logo, nameplate, and product marking options are available for approved OEM / ODM orders.
Market Configuration
Voltage, frequency, plug type, and other applicable utility requirements are reviewed for the selected model and destination market.
Export Packaging
Labels, manuals, and export packaging can be prepared according to confirmed order requirements.
FREQUENTLY ASKED QUESTIONS
Common B2B Product Questions
Tarzan Kitchen is a commercial kitchen equipment manufacturer with production, assembly, inspection and export packing capabilities.
MOQ depends on the product model, quantity and customization requirements. Small trial orders may be available for selected standard products.
Lead time depends on the model, order quantity, component availability, and customization requirements. The applicable production schedule is confirmed with the quotation.
Available OEM / ODM options may include branding, voltage, frequency, plug type, packaging, and selected product configurations, subject to order review.
Certificates and export documents vary by model and destination market. Our sales team confirms the applicable document set for the quoted model.
Warranty terms and spare parts support depend on the product model and order requirements. The applicable coverage and recommended spare parts can be confirmed with the quotation.
