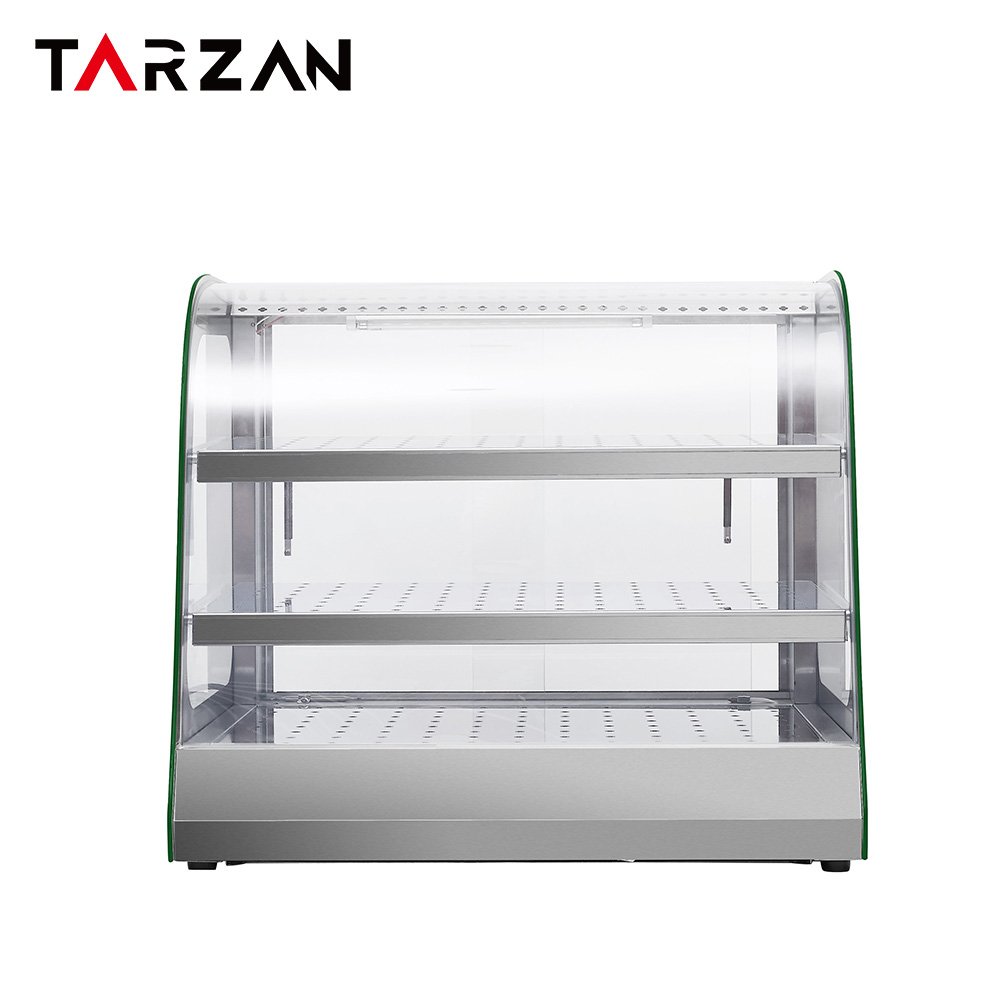

Commercial Food Warmer Showcase TFW-802
660 mm Countertop 3-Tier Commercial Food Warmer Showcase with Curved Glass & 1.5 kW Heated Air Circulation
Heavy-Duty Stainless Steel Merchandiser with Perforated Shelves, Real-Time Temp Gauge & Rear Sliding Doors for Delis
TFW-802: Request Wholesale Quote by Voltage (110V-240V), Plug Standard, and Order Quantity
Food-Grade Stainless Steel • Curved Tempered Glass Merchandiser
660 mm 3-Tier Heated Showcase with Perforated Shelves, Rear Sliding Doors & 1.5 kW Output
660×530×590 mm • 28 KG • 1.5 KW • 110–240V / 50-60Hz • 3 Tiers (Perforated Shelves)
Power Supply
110V / 220V–240V, 50/60Hz. Pre-fitted with US, EU, UK, or AU plugs.
MOQ
5 Units. Tiered factory pricing available for volume and container orders.
Lead Time
5–7 business days for standard batch; 15–20 days for bulk container production.
OEM / ODM
Available from 10 units. Supports custom laser logo, packaging, and localized voltage.
Factory Manufacturer
Production, assembly and export packing capability
OEM / ODM Support
Branding, market configuration and packaging
Quality Inspection
Appearance, function and operating checks before packing
Export Order Support
Quotation, packing, documents and loading coordination
Product Details
Designed for eye-catching countertop food presentation and reliable thermal holding, the commercial food warmer showcase TFW-802 maintains appetizing serving temperatures for fried chicken, egg tarts, pizza slices, burgers, pastries, croissants, meat pies, and warm deli snacks in cafes, bakeries, fast-food outlets, convenience stores, and cafeteria service counters.
Constructed with a 28 kg heavy-duty food-grade stainless steel base and four-sided double-layered microcrystalline tempered glass, this commercial food warmer showcase features an elegant curved front profile that ensures high thermal insulation, scratch resistance, and panoramic 360-degree food visibility under continuous commercial operation.
The commercial food warmer showcase TFW-802 is powered by an efficient 1.5 kW circulating heating system, 3 heavy-gauge perforated food-grade stainless steel shelves, an integrated mechanical temperature display dial on the rear bezel, warm top canopy merchandising lighting, and smooth-gliding rear sliding glass doors.
✔ Compact 660 mm countertop 3-tier commercial electric heated display showcase overall dimensions: 26.0″W x 20.9″D x 23.2″H (660 x 530 x 590 mm)
✔ Powerful 1.5 kW (1500W) heating element operating on universal 110V-240V / 50-60Hz commercial electrical circuits
✔ Four-sided high-transparency double-layered microcrystalline tempered glass delivering superior thermal insulation and distortion-free viewing
✔ High-capacity 3-tier display layout featuring 3 perforated stainless steel shelves ensuring uniform heat circulation through shelf vents
✔ Height-adjustable internal shelf brackets accommodating various pan depths, whole roast chickens, and tall bakery items

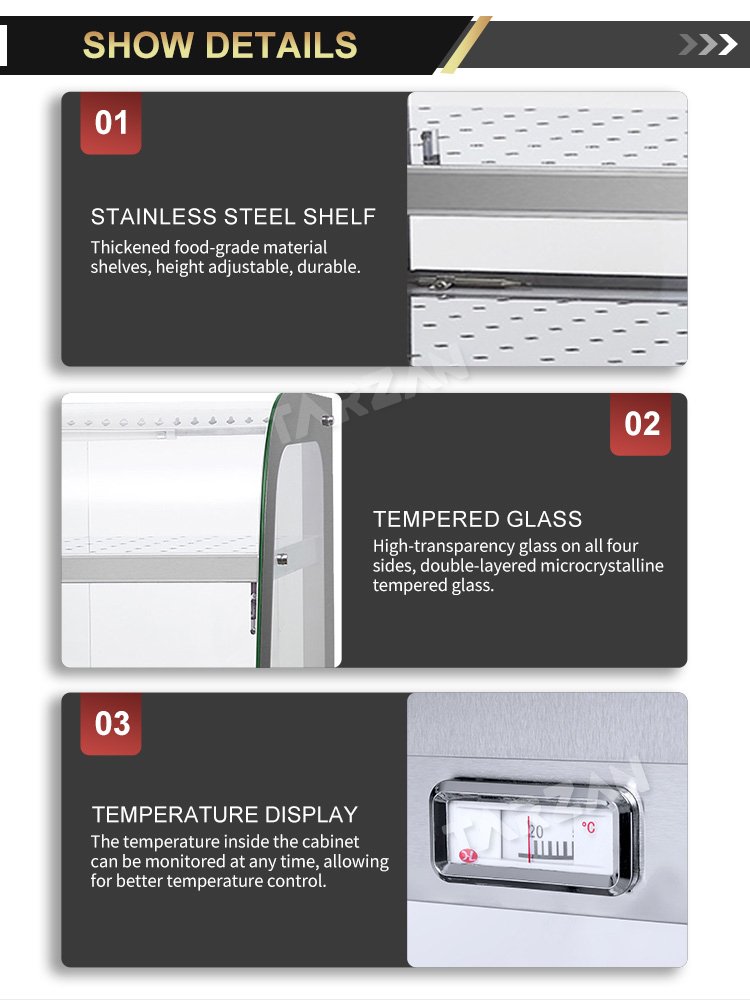

✔ Integrated mechanical temperature display dial providing instant real-time internal heat monitoring without opening the doors

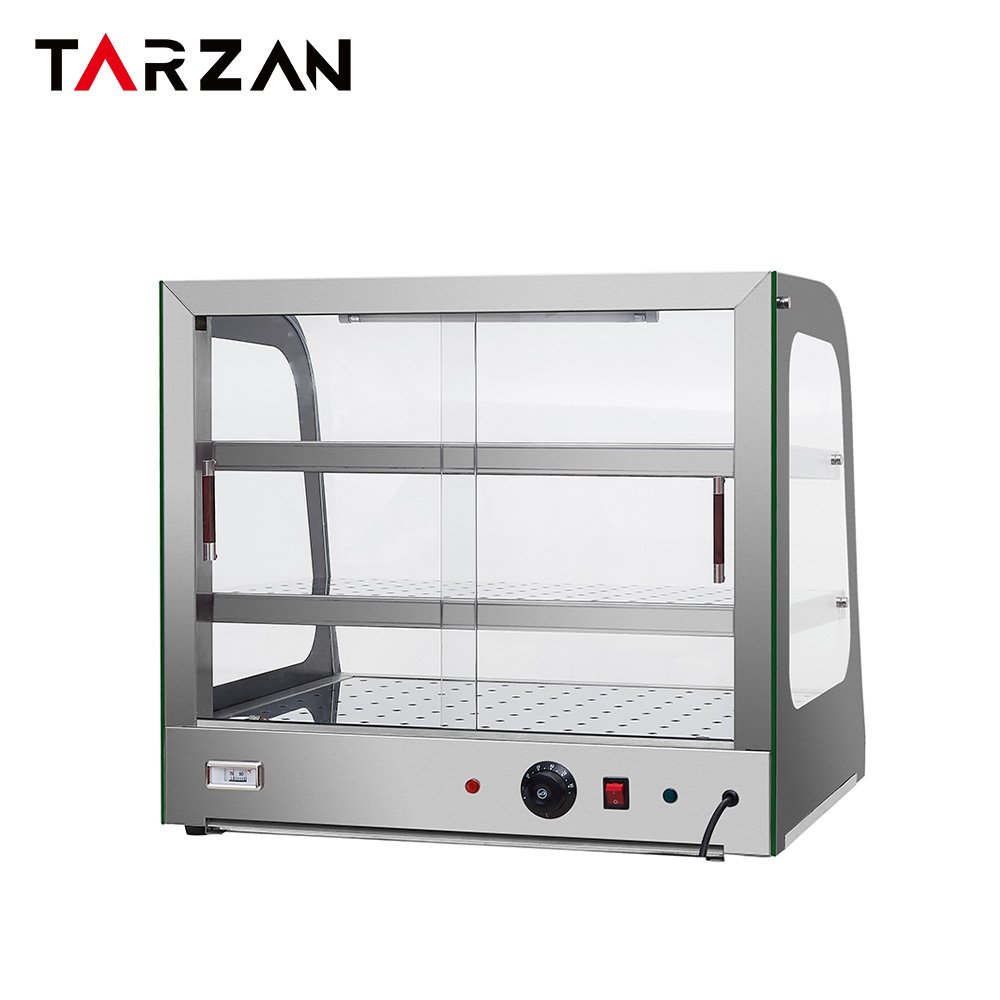

✔ Rear sliding tempered glass doors enabling fast loading, restocking, and customer service during high-traffic rush hours
✔ Rear-mounted operator control panel equipped with a precision 30°C to 85°C rotary thermostat dial, master power switch, and heating pilot lamp
✔ Top warm-tone merchandising light bar highlighting food color and appetizing texture to drive impulse counter purchases
✔ Top thermal ventilation louvers preventing steam condensation on interior glass panels to maintain food crispness
✔ Heavy-duty anti-slip rubber feet keeping the unit firmly positioned on stainless steel countertops and POS checkout areas

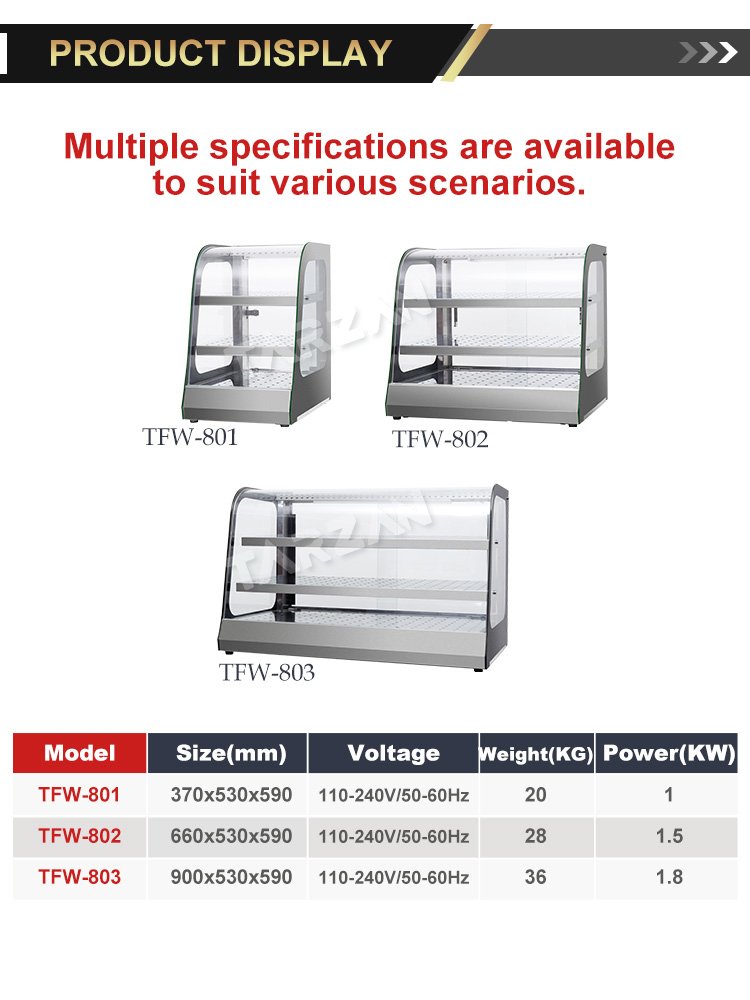

✔ Series size options available: Compact TFW-801 (370 mm / 1.0 kW / 20 kg), Standard TFW-802 (660 mm / 1.5 kW / 28 kg), and Wide TFW-803 (900 mm / 1.8 kW / 36 kg)
✔ B2B wholesale & OEM supply: Custom voltage configurations (110V/220V), custom plug standards, private branding, and export-grade protective packaging available upon request
TECHNICAL DATA
Specifications
Additional information
| Dimensions | 540×450×640 |
|---|---|
| Material | Toughened Glass |
| Power | 1.2 |
| Power Source | Electric |
| Model Number | TFW-802 |
| Product Type | Display |
| Temperature Range | 30°C – 85°C |
| Net Weight | 18 KG |
| Capacity | 3 |
FACTORY & PRODUCTION
Inside Tarzan Kitchen
Production, assembly, inspection and export packing support for commercial kitchen equipment orders.
Production to Export Preparation
Production Workshop
Fabrication and equipment production.
Equipment Assembly
Bodies, controls and components assembled for the selected equipment.
Inspection Before Packing
Appearance and operating checks according to order requirements.
Export Preparation
Packing, documents and loading coordination.
Production Workshop
Equipment Assembly
Finished Equipment
OEM / ODM & EXPORT
Branding, Market Configuration & Packing
Custom Branding
Logo, nameplate, and product marking options are available for approved OEM / ODM orders.
Market Configuration
Voltage, frequency, plug type, and other applicable utility requirements are reviewed for the selected model and destination market.
Export Packaging
Labels, manuals, and export packaging can be prepared according to confirmed order requirements.
FREQUENTLY ASKED QUESTIONS
Common B2B Product Questions
Tarzan Kitchen is a commercial kitchen equipment manufacturer with production, assembly, inspection and export packing capabilities.
MOQ is 5 units for standard models. Tiered factory pricing applies to volume and container orders.
5–7 business days for a standard batch, and 15–20 days for bulk container production.
Yes. OEM / ODM is available from 10 units and covers logo, nameplate, packaging, voltage, frequency and plug type.
CE documentation and test reports are available for selected models. Export documents are issued per order according to the destination market.
Generally 12 months on selected standard models, with spare parts support. See our warranty policy for scope, exclusions and the claim process.
