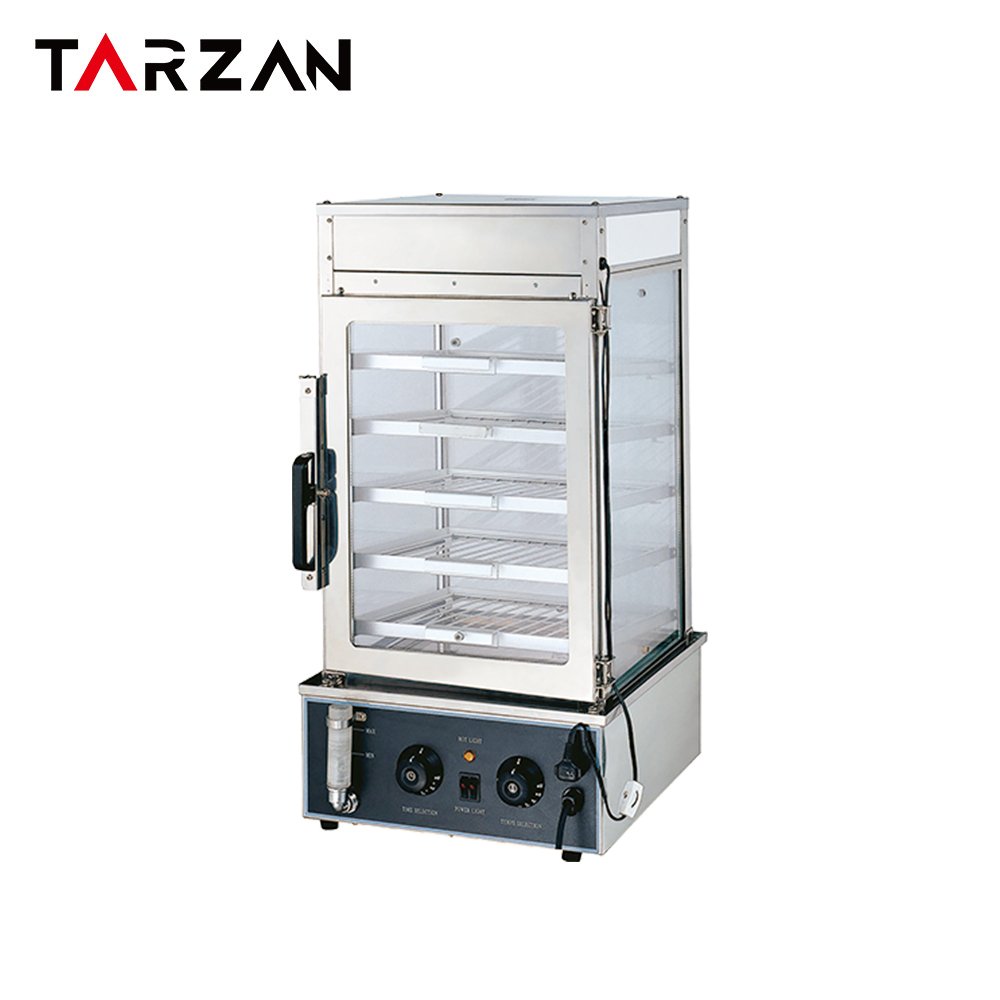

Vertical Steamed Food Warmer Showcase TFW-500H

Vertical Countertop Steamed Food Display Cabinet with 5-Tier Shelves & Water Level Indicator
High-Transparency Tempered Glass Steamer for Convenience Stores, Breakfast Kiosks, and Dim Sum Outlets
TFW-500H: Request Quote by Voltage, Plug Standard, and Order Quantity

Stainless Steel Frame & Tempered Glass Steamer Showcase

Vertical 5-Tier Steamed Food Display Cabinet with External Water Level Gauge

380×420×760 mm • 24 KG • 1.2 KW • 30-110°C Temp Dial • 110V-240V

Order Information

Power Supply

110V / 220V–240V, 50/60Hz. Pre-fitted with US, EU, UK, or AU plugs.

MOQ

5 Units. Tiered factory pricing available for volume and container orders.

Lead Time

5–7 business days for standard batch; 15–20 days for bulk container production.

OEM / ODM

Available from 10 units. Supports custom laser logo, packaging, and localized voltage.

Factory Manufacturer

Production, assembly and export packing capability

OEM / ODM Support

Branding, market configuration and packaging

Quality Inspection

Appearance, function and operating checks before packing

Export Order Support

Quotation, packing, documents and loading coordination

PRODUCT DETAILS

Product Details

Designed for vertical food holding and steaming, the commercial food warmer TFW-500H provides a 5-tier display cabinet for steamed buns, dim sum, dumplings, and hot snacks in convenience stores, breakfast kiosks, and fast-food outlets.

Constructed with a sturdy 24 kg stainless steel body and high-transparency double-layered microcrystalline tempered glass, this commercial food warmer delivers high thermal insulation, structural rigidity, and safe multi-sided product visibility.

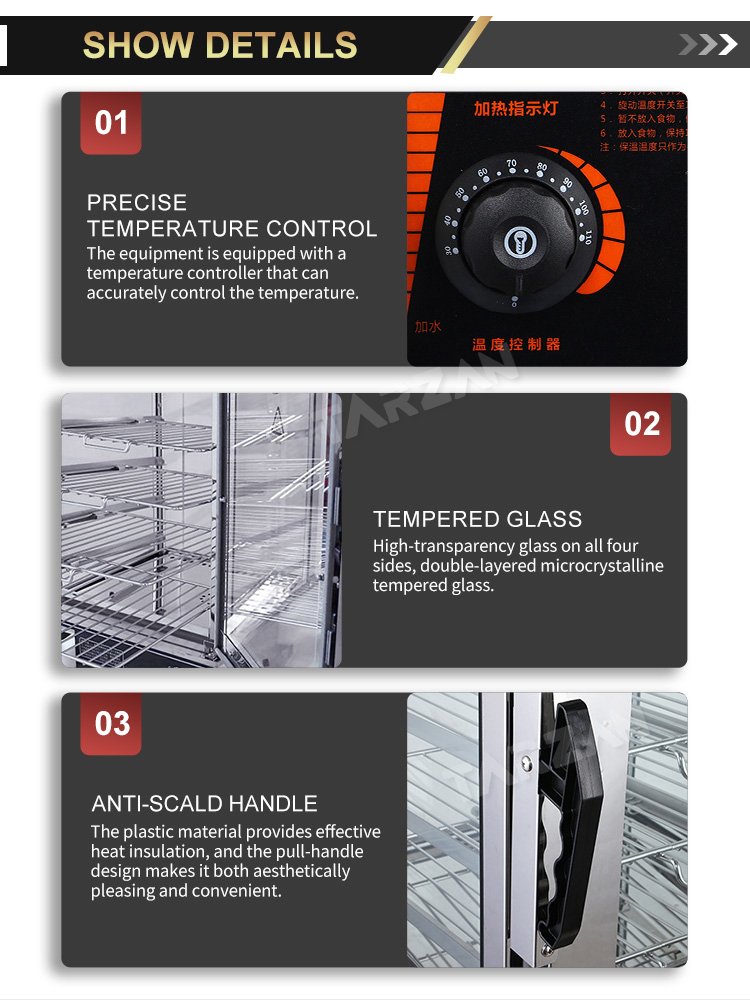

The commercial food warmer TFW-500H features a 30°C to 110°C precise temperature dial, an external water level sight gauge, an ergonomic anti-scald handle, and 5 removable wire shelves for easy sanitation and food access.

✔ Vertical 5-tier commercial food warmer steamer cabinet overall dimensions: 15.0″W x 16.5″D x 29.9″H (380 x 420 x 760 mm)
✔ Powerful 1.2 kW heating element operating on universal 110V-240V / 50-60Hz electrical supplies
✔ Wide thermostatic temperature control range from 30°C to 110°C for precise heat adjustment
✔ External transparent water level indicator pipe for quick visual inspection of the water reservoir
✔ Ergonomic heat-insulated anti-scald door handle providing safe and comfortable daily operation
✔ Four-side double-layered microcrystalline tempered glass maintaining interior heat while preventing condensation
✔ 5-tier removable stainless steel wire shelves accommodating high-capacity food tray arrangements
✔ Heavy-duty 24 kg stainless steel frame constructed for corrosion resistance and easy daily wiping

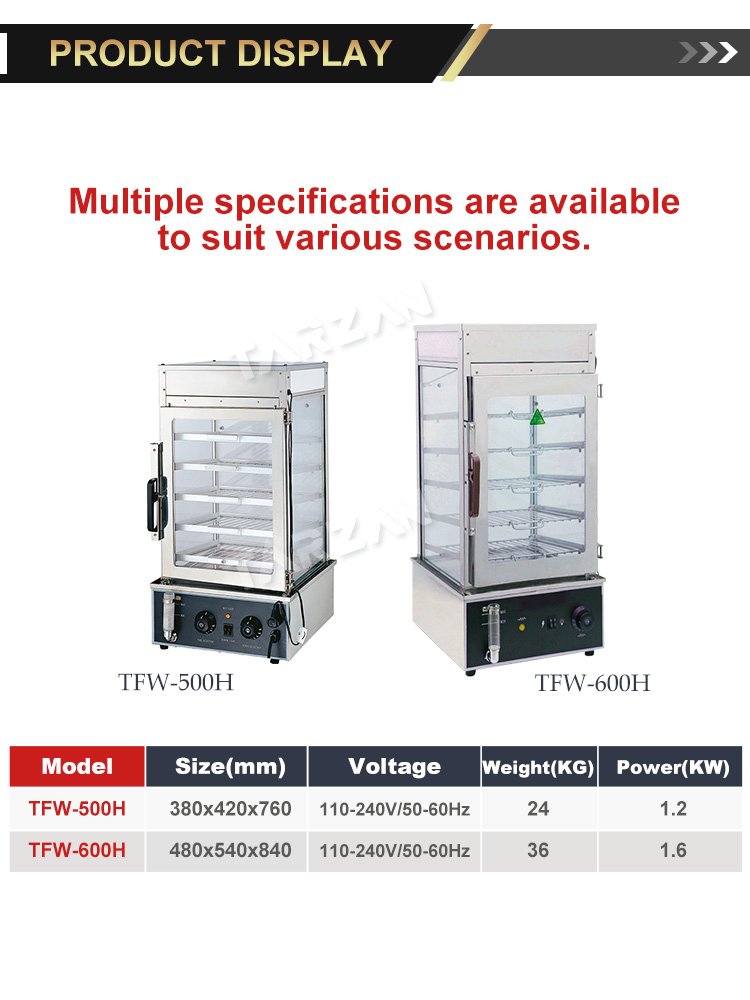

✔ Larger series option available: TFW-600H (480 x 540 x 840 mm / 1.6 kW / 36 kg)

TECHNICAL DATA

Specifications

Additional information

Dimensions

380×400×745

Material

Toughened Glass

Power

1.2

Power Source

Electric

Model Number

TFW-500H

Product Type

Display

Temperature Range

30°C – 85°C

Net Weight

22 KG

Capacity

5

FACTORY & PRODUCTION

Inside Tarzan Kitchen

Production, assembly, inspection and export packing support for commercial kitchen equipment orders.

Exterior view of the Tarzan Food Machinery Expert company headquarters building featuring the brand logo on the front facade

Production to Export Preparation

Production Workshop

Fabrication and equipment production.

Equipment Assembly

Bodies, controls and components assembled for the selected equipment.

Inspection Before Packing

Appearance and operating checks according to order requirements.

Export Preparation

Packing, documents and loading coordination.

Laser cutting and CNC press brake machines in the Tarzan Kitchen sheet metal production workshop

Production Workshop

Workers assembling stainless steel commercial kitchen equipment in the Tarzan Kitchen factory

Equipment Assembly

Packaged commercial kitchen equipment and export crates stored in the Tarzan Kitchen factory warehouse

Finished Equipment

OEM / ODM & EXPORT

Branding, Market Configuration & Packing

Custom logo nameplates and OEM components for Tarzan Kitchen commercial waffle makers and hot dog roller grills

Custom Branding

Logo, nameplate, and product marking options are available for approved OEM / ODM orders.

Power plug options for Tarzan Kitchen equipment in the UK, Europe, North America, Australia and New Zealand

Market Configuration

Voltage, frequency, plug type, and other applicable utility requirements are reviewed for the selected model and destination market.

Private-label commercial kitchen equipment packed in custom-branded export cartons at the Tarzan Kitchen warehouse

Export Packaging

Labels, manuals, and export packaging can be prepared according to confirmed order requirements.

FREQUENTLY ASKED QUESTIONS

Common B2B Product Questions

Tarzan Kitchen is a commercial kitchen equipment manufacturer with production, assembly, inspection and export packing capabilities.

MOQ is 5 units for standard models. Tiered factory pricing applies to volume and container orders.

5–7 business days for a standard batch, and 15–20 days for bulk container production.

Yes. OEM / ODM is available from 10 units and covers logo, nameplate, packaging, voltage, frequency and plug type.

CE documentation and test reports are available for selected models. Export documents are issued per order according to the destination market.

Generally 12 months on selected standard models, with spare parts support. See our warranty policy for scope, exclusions and the claim process.
